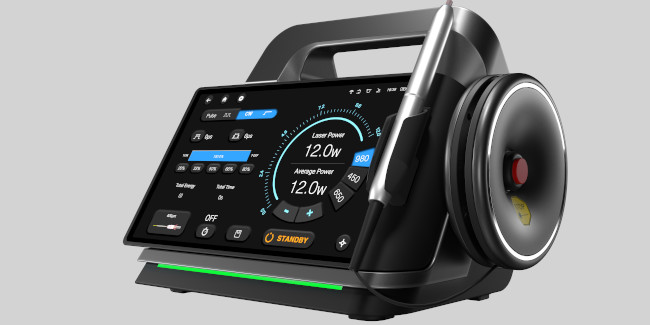

Pioon S3 Plus

Technology Redefining Efficiency

Presenting the S3 Plus dental diode laser (980nm/810nm + 650nm + 450nm), a groundbreaking innovation poised to redefine soft tissue dental laser technology. World class powered diode laser to meet the expectations and efficiencies of the professional dental laser user. Tailored to address diverse clinical requirements, the S3 Plus boasts a three-wavelength combination incorporating red, near infrared and blue wavelengths designed to meet a spectrum of needs. Spanning across eight district clinical treatment categories, this advanced laser system encompasses 57 built-in preset treatments. Every treatment comes with detailed clinical guidelines and is supported by a variety of instructional videos to guide practitioners.

The S3 Plus laser not only pioneer’s clinical efficacy, but also sets new benchmarks for convenience and connectivity. Equipped with Wi-Fi and Bluetooth, complimented by an intelligent operating system, the S3 Plus presents a gateway to limitless future possibilities. The innovation, adaptability, and precision of three-wavelength lasers to meet different clinical needs, positions the S3 Plus at the forefront of dental lasers, elevating it as the premier choice for modern dental professionals worldwide.

TREATMENTS

The versatile laser system features a bank of 57 presets, spanning across 8 categories, equipping it with the ability to accommodate a wide spectrum of treatments:

Prosthodontics
• Troughing
• Vestibuloplasty
• Soft Tissue Crown Lengthening
• Gingival Polyp

Periodontics
Non-Surgical
• Debridement Curettage/Pocket
• Gum Biostimulation
• Periodontal Therapy
• Bacterial Count Reduction
• Anti-Microbial Dynamic Therapy
Surgical
• Gingival Recession
• Frenectomy/Frenoctomy
• Gingivectomy

Implantology
• Implant Uncovering
• Stage II Implant Surgery
• Laser Assisted Peri-Implantitis Procedure
• Laser Troughing Prior to Impression
• Biostimulation

Aesthetics
• Teeth Whitening
• Gingivoplasty
• Gingival Depigmentation
• Lip Depigmentation
• Aesthetic Contouring
• Gingival Contouring
• Micro Coagulation
• Lip Repositioning Surgery

Photobiomodulation/Low Level Light Therapy (LLLT)
• Desensitisation
• Aphthous Ulcers
• Wound Healing
• PDT
• Herpetic Lesions
• Angular Cheilitis
• Biostimulation
• Postoperatory
• Mucosare Generation Posscale
• Post Periodontal Surgery
• Anesthesia

Pedodontics
• Exposure of Unerupted Teeth
• Pulpotomy (Ablation)
• Pulpotomy (Hemostasis)
• Tongue Tie
• Enamel Welding

Endodontics
• Root Canal Disinfection
• Periapical Abscess
• Pulpotomy
• Direct Pulp Capping

Oral Surgery
• Biopsy (Incisional/Excisional)
• Exposure of Unerupted Teeth
• Hemangioma
• Granuloma
• Hemostasis
• Leukoplakia
• Oral Papillectomies
• Hyperplasia
• Fibroma
• Mucocele
• Oral Submucous Fibrosis

Before & After Treatment Shots

Gingivoplasty

Gingivoplasty
Laser source: Pioon Diode Laser


Teeth Whitening

Teeth Whitening
Laser source: Pioon Diode Laser

Teeth Whitening

Teeth Whitening
Laser source: Pioon Diode Laser

Depigmentation

Depigmentation
Laser source: Pioon Diode Laser

Implant Uncovering

Implant Uncovering
Laser source: Pioon Diode Laser

WHY PIOON S3 PLUS

3-Wavelengths: including the blue wavelength, facilitating adaptability, allowing the laser system to carry out a diverse array of treatments.

Blue wavelength: reaches the maximum absorption peak of haemoglobin, enabling efficient non-contact cutting and coagulation at very low power, while minimizing thermal damage.

Red wavelength: LLLT (Low Level Laser Therapy) /Photobiomodulation for faster wound healing and pain-free dental treatments.

Near infrared wavelength: provide deep penetration for exceptional disinfection in periodontal, endodontic, and implant treatments. Its excellent absorption by water enhances tissue ablation, ensuring effective and precise treatment outcomes.

Super short pulse duration: allows energy to be highly concentrated in instantaneous pulses enabling greater energy density and deep penetration.

Versatility and effectiveness: 57 Specific presets and 8 categories.

Reduced intervention time: shortens surgical time, allowing doctors to see more patients.

Tissue bleeding control: manage bleeding effectively, keeping the surgical area clear.

Smart dental software: optimising treatment precision, possibilities and ease of use for practitioners

Improve patient comfort: offering virtually painless, anaesthetic/suture-free, treatments.

Improve patient healing: patients usually experience little pain, swelling, or infection, removing the need for medications, allowing them to return to their normal activities quickly.

Competitive edge: The versatility of S3 Plus allows doctors to expand their clinical services, providing a wider range of options.

Globally endorsed: praised by leading dental professionals around the world.

Pioon S3 Plus

  • Diode Triple Wavelength: 980/810 nm (interchangeable) + 650 nm + 450 nm
    • 810 nm (Interchangeable for 980nm)
      • Wavelength: Near Infrared
      • Power: 8W
    • 980 nm (Interchangeable for 810nm)
      • Wavelength: Near Infrared
      • Power: 12W
    • 650 nm
      • Wavelength: Red
      • Power: 500mW
    • 450 nm
      • Wavelength: Blue
      • Power: 7W
  • Fibre delivery: (200μm), (300μm), (400μm), Length 3m
  • Aiming beam: Red pilot 650nm < 2mW, adjustable density
  • Foot pedal: Wireless medical grade
  • Laser module: Micro-optical integrated laser diodes 20,000h durability
  • Operating Modes: Continuous wave / Pulsed
  • Control software: Smart OS + AI + human laser interaction
  • Display: 2K HD 7” retina touch screen
  • Battery: Lithium capacity 3600mAh, 30min full power output
  • Cooling: Double fan & electronic cooling system / multi-channel copper tube
  • Input voltage: 100-240 V AC
  • Power Supply: 18VDC 5.55A
  • Dimensions (L x W x H): 225 mm x 150 mm x 150 mm
  • Weight: <2 kg NW



Pioon S3

  • Diode Triple Wavelength: 980/810 nm (interchangeable) + 650 nm + 450 nm
    • 810 nm (Interchangeable for 980nm)
      • Wavelength: Near Infrared
      • Power: 6W
    • 980 nm (Interchangeable for 810nm)
      • Wavelength: Near Infrared
      • Power: 7W
    • 650 nm
      • Wavelength: Red
      • Power: 200mW
    • 450 nm
      • Wavelength: Blue
      • Power: 3W
  • Fibre delivery: (200μm), (300μm), (400μm), Length 3m
  • Aiming beam: Red pilot 650nm < 2mW, adjustable density
  • Foot pedal: Wireless medical grade
  • Laser module: Micro-optical integrated laser diodes 20,000h durability
  • Operating modes: Continuous wave / Pulsed
  • Control software: Smart OS + AI + human laser interaction
  • Display: 2K HD 7” retina touch screen
  • Battery: Lithium capacity 3600mAh, 30min full power output
  • Cooling: Double fan & electronic cooling system / multi-channel copper tube
  • Input voltage: 100-240 V AC
  • Dimensions (L x W x H): 225 mm x 150 mm x 150 mm
  • Weight: <2 kg NW

HANDPIECES

With a comprehensive range of professional dental laser attachments, the H1™ intelligent dental laser becomes your reliable partner for every treatment, ensuring ease and effectiveness. It effortlessly enhances your skill set and ensures your patients’ satisfaction.

Multi-functional handpiece

  • Allows easy use of all adapters and tips

Disposable Fiber Tips

  • 200 um, 300 um, 400 um diameters
  • Various lengths
  • Radial firing options

Photobiomodulation adapter

  • Intraoral wound healing
  • Inflammation reduction
  • Pain reduction

TMJ adapter

  • TMD Therapy
  • Inflammation reduction
  • Pain reduction

Whitening adapter

  • Teeth whitening

TRAINING AND SUPPORT

At Innovative, we believe in prioritising excellence in every aspect of your journey with us. That’s why our comprehensive training and support services are here to equip you with the knowledge and skills needed to maximise the potential of your equipment.
Marketing Made Easy

When you partner with us, you gain access to a wealth of digital marketing resources that will elevate your practice’s visibility and attract and educate clients. Additionally, our hard copy banners and patient brochures are thoughtfully designed to showcase your services and create a lasting impression.

Training Tailored To You

Our training programs are meticulously crafted to cater to your needs. Whether you’re new to lasers or a seasoned practitioner, our online theory and practical training, facilitated by our highly skilled clinical trainers, will empower you to harness the full potential of your investment.

Safety First

We understand the significance of laser safety, and that’s why our Laser Safety Course is an integral part of our training offerings. Your safety and that of your clients remain our top priority.

Continuous Learning

Learning doesn’t stop with the initial training. At Innovative, we offer ongoing training webinars and workshops to keep you up to date with the latest advancements and ensure you’re always ahead of the curve.

A Trusted Partnership

Beyond being your equipment supplier, we strive to be your trusted business partner. Your success and the quality of care you provide to your valued clients are of the utmost importance to us. Rest assured, with Innovative, you’ll have all the necessary resources and support at your disposal to seamlessly integrate our products into your practice. We’re committed to standing by your side every step of the way.

SERVICING

Innovative is your trusted business partner, dedicated to your success and the quality of care you provide to your valued customers. That’s why we offer a range of continuous maintenance, improvements, and upgrades to ensure your experience with our products remains exceptional.
Assured Performance

When you choose the S3 Plus, you’re not just acquiring cutting-edge technology; you’re investing in peace of mind. Our system comes with a 3-year factory warranty on device and 1-year on accessories, demonstrating our confidence in its reliability and performance.

Local Expertise

Rest easy knowing that our in-house engineers are based right here in Australia and New Zealand. When you need assistance or support, they are readily available to address any concerns and provide prompt solutions, so you can keep your practice running smoothly.

FINANCE

We want to make our products accessible to a wide range of buyers, which is why work with flexible financing partners to cater to your unique needs. Our goal is to streamline the financing process, so you can focus on what matters most – providing exceptional care to your patients.
